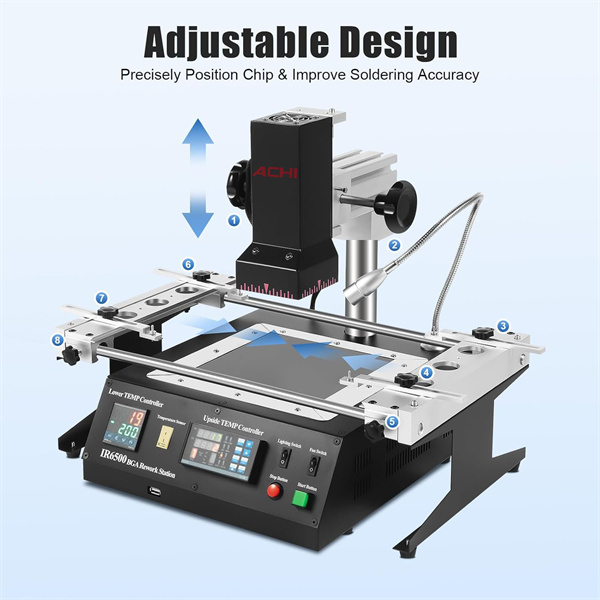

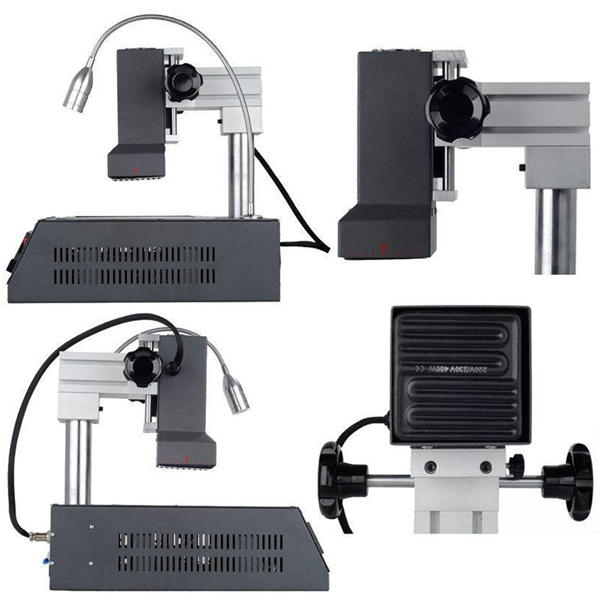

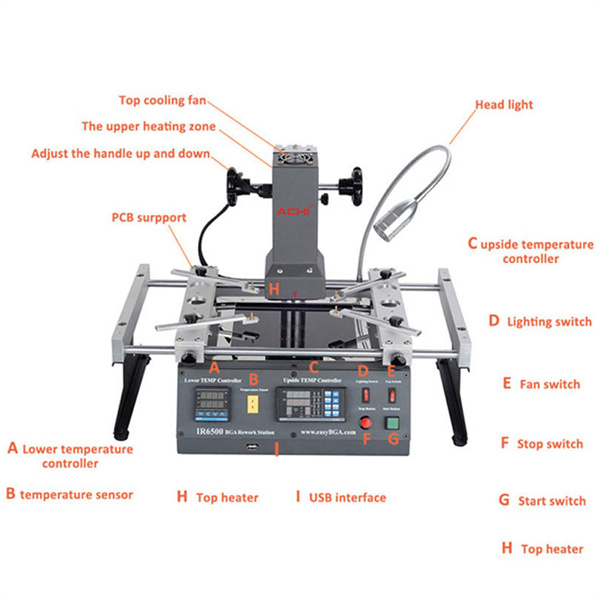

ACHI IR 6500 BGA Machine Infrared BGA Rework Station for Motherboard Chip PCB Refurbished Repair BGA Rework Equipment

Item No.: ACHI IR6500

Brand: ACHI
Model: IR 6500
BGA Rework Station
Heating Mode: Infrared
Total Power: 1250W
Size of upper heating:80*80mm
Size of bottom heating:80mm*180mm
PCB board: Max. 400*305 mm
BGA chip size:Max. 70*70 mm
Weight:16kg
Package Size: 47*47*46cm

IR6500-Manual-ENDownload

INQUIRY

PDF Format

Description

ACHI IR 6500 BGA Machine Infrared BGA Rework Station for Motherboard Chip PCB Refurbished Repair BGA Rework Equipment

Total power

1250W

Voltage

AC220V±10% 50/60Hz

Top heater

Infrared 400W

Bottom heater

Infrared 800W

Size of top heater

80mm*80mm

Size of bottom heating

180mm*180mm

PCB size

Max. 400*305 mm

BGA chip size

Max. 70*70 mm

Positioning

V-groove PCB

Temperature control

K Type temperature Sensor and Closed loop

Temperature accuracy

±2°C

Package Dimension

47*47*46cm

Net weight

16KG
