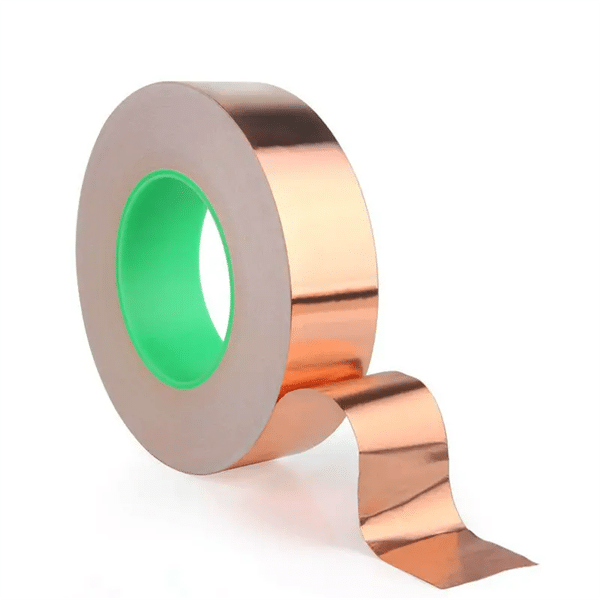

Double Sided Copper Tape Conductive Adhesive Tape Copper 30M Length 3mm~380mm Width EMI DIY Circuit Electrical Repair

Click And Watch The Youtube Video Link：

https://www.youtube.com/shorts/JKWxMn7w_IY

Features:
Material: Cu 99.98%
Thickness of copper foil: 0.05mm
Length/Roll: 30m
Width: 3mm ~ 380mm (Customizable Cutting)
Double Side Conductive
Adhesive force:1.5~1.3kg/25mm
Temperature Resistance:－10℃---130℃
Dynamics:4.5~4.8kg/mm
Elongation: 7%~4%
Product usage:
Shielding Cavities
The back of guitar pickguards
Eliminates electrical hum and noise
Replace tracks on electrical & printed circuit boards (can solder)
Slug & snail barrier tape

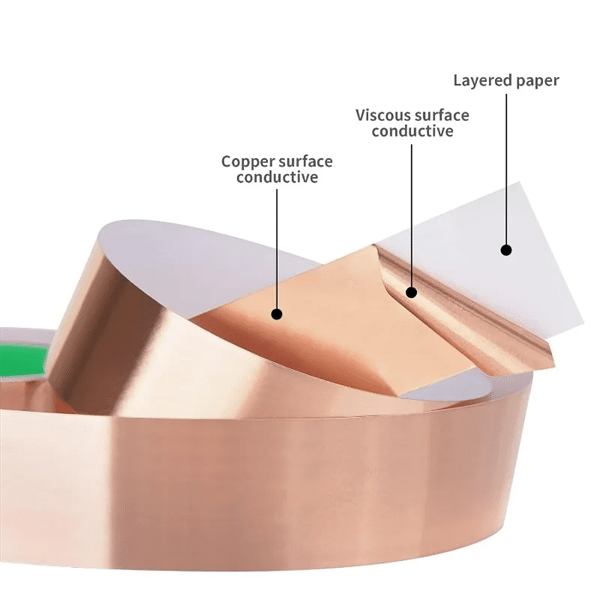

Differences between single-conductive and double-conductive copper tapes:

    •    Single-conductive: White core, single-sided conductive. Only the surface is conductive; the adhesive layer is non-conductive.

    •    Double-conductive: Dual-conductive, green core, double-sided conductive. Both the surface and the adhesive layer are fully conductive.
